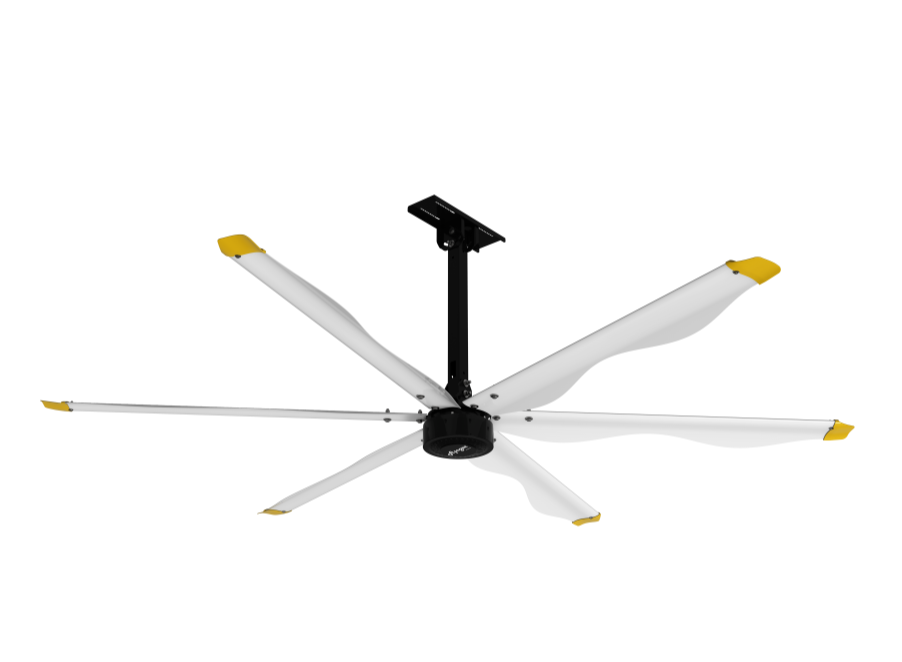

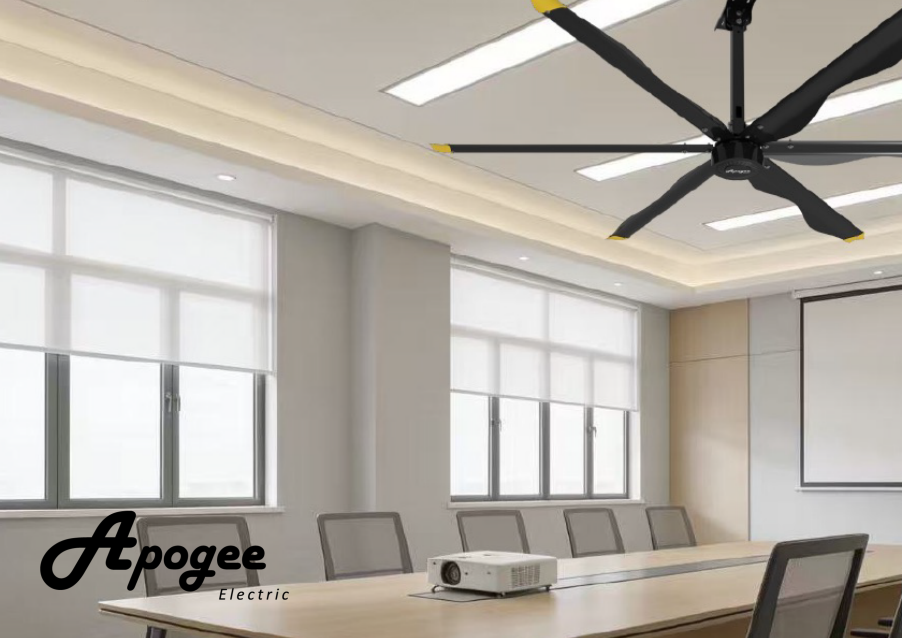

Commercial HVLS Fan – SDM Series

2-3.6m Diameter

8600-7300m³/min Air Flow

100-200 rpm Max. Speed

600-250㎡ Coverage Area

0.5kw/h Power

Wave streamline design breaks away from the traditional straight fan blade shape, featuring smooth lines and a more dynamic appearance. It boosts air volume while enhancing the overall taste and texture of the space.

The special-shaped curved surface pressurization technology achieves airflow coverage over a wider area. Unlike the harsh wind of traditional fans, it delivers soft and comfortable wind with balanced airflow throughout the entire space, greatly improving the comfort experience.

Product Detail

SDM Series Specification ( Direct Drive with PMSM Motor )
Model	Size MM	Blade PCS	Weight KG	Voltage V	Current A	Power KW	Speed RPM	Airflow M³/min	Coverage Area ㎡
SDM-3600	3600	6	66	220	3.1	0.5	100	8600	600
SDM-3000	3000	6	63	220	2.7	0.5	110	8350	500
SDM-2500	2500	6	61	220	2.3	0.5	150	7500	360
SDM-2000	2000	6	58	220	1.9	0.5	200	7300	250

● Delivery terms: Ex Works, FOB, CIF, Door to Door.

● Input power Supply: single-phase, three-phase 120V, 230V, 460V, 1p/3p 50/60Hz.

● Building Structure: H-beam, Reinforced Concrete Beam, Spherical Grid.

● The minimum installation height of the building is above 3.5m, if there is crane, the space between beam and crane is 1m.

● The safety distance between fan blades and obstacles is above 0.3m.

● We provide technical support of measurement and installation.

● Customization is negotiable, such as logo, blade color…

Product Advantages

Energy Efficient

Apogee SDM Series HVLS Fan are equipped with high-performance PMSM permanent magnet direct drive motors, which deliver ultra-high energy conversion efficiency and remarkably cut down power consumption during long-hour operation. Most commercial spaces such as restaurants, shopping malls and offices stay open for 10 to 16 hours every day, and traditional air conditioners or dozens of small wall fans will lead to exorbitant monthly electricity bills. Just one single large commercial fan can realize full-space air circulation over hundreds of square meters with only little power input. Meanwhile, the optimized wave streamline blades effectively reduce rotational wind resistance and mechanical energy loss, bringing more prominent energy-saving effects all year round. For gyms and large catering venues with high daily passenger flow, this fan can greatly relieve the pressure of high energy expenditure and help merchants achieve low-carbon, cost-effective daily operation without sacrificing indoor comfort.

Help People Cool Down

Supported by proprietary curved surface pressurization technology, the fan produces soft three-dimensional natural breeze that brings an obvious 5–8°C cooling effect on human bodies. Different from sharp gusts from small fans, its evenly spread airflow won’t cause dry discomfort. It rapidly dissipates accumulated heat in crowded sweltering commercial venues such as dining halls, fitness studios and open offices, effectively relieving summer stuffiness and improving comfort for customers and working staff.

Promote Air Circulation

Large-diameter fan blades push massive air volume to form continuous vertical and horizontal convection in high-ceiling commercial spaces. It thoroughly breaks hot air stratification near ceilings and eliminates all muggy airflow dead corners in venue edges, seating areas and training zones. Constant large-area ventilation accelerates indoor air exchange, balances temperature and humidity, and removes food, sweat peculiar smells to keep restaurants, malls and offices fresh and breathable all day long.

Beautiful And Safe

Featuring unique wave streamline blades and minimalist integrated structure, the fan abandons crude traditional fan appearances and fits perfectly with light-luxury restaurants, trendy gyms, fashion malls and high-end offices to lift overall space aesthetic. All core parts pass strict aging and load tests, equipped with anti-loose fasteners, overload auto power-off and anti-fall structures to deliver all-round safe, stable running for crowded public commercial scenes.

Main Components

1. Motor:

IE4 Permanent Magnet BLDC Motor is Apogee Core technology with patents. Compared with geardrive fan, it has brilliant features, energy saving 50%, maintenance free (without gear problem), longer lifetime 15years, more safe and reliable.

2. Driver:

Drive is Apogee core technology with patents, customized software for hvls fans, smart protection for temperature, anti-collision, over-voltage, over-current, phase break, over-heat and etc. The delicate touchscreen is smart, smaller than big box, it shows speed directly.

3. Central Control:

Apogee Smart Control is our patents, able to control 30 large fans, through timing and temperature sensing, the operation plan is pre-defined. While improving the environment, minimize the cost of electricity.

4. Bearing:

Double bearing design, use SKF brand, to keep long lifetime and good reliability.

5. Bearing:

Hub is made of ultra-high strength, Alloy steel Q460D.

6. Bearing:

Blades is made of aluminum alloy 6063-T6, aerodynamic and resist fatigue design, effectively prevent deformation, big air volume, surface anodic oxidation for easy clean.
