TM Series – SEW Gear Drive Motor – Apogee Detail:

TM Series Specification ( SEW Gear driver)
Model	Diameter	Blade Qty	Weight KG	Voltage V	Current A	Power KW	Max.Speed RPM	Airflow M³/min	Coverage Area ㎡
TM-7300	7300	6	126	380V	2.7	1.5	60	14989	800-1500
TM-6100	6100	6	117	380V	2.4	1.2	70	13000	650-1250
TM-5500	5500	6	112	380V	2.2	1.0	80	12000	500-900
TM-4800	4800	6	107	380V	1.8	0.8	90	9700	350-700
TM-3600	3600	6	97	380V	1.0	0.5	100	9200	200-450
TM-3000	3000	6	93	380V	0.8	0.3	110	7300	150-300

• Customization is negotiable, such as logo, blade color…
• Input power Supply: single-phase, three-phase 120V, 230V, 460V, 1p/3p 50/60Hz
• Building Structure: H-beam, Reinforced Concrete Beam, Spherical Grid
•The minimum installation height of the building is above 3.5m, if there is crane, the space between beam and crane is 1m.
• The safety distance between fan blades and obstacles is above 0.3.
• We provide technical support of measurement and installation.
• Delivery terms: Ex Works, FOB, CIF, Door to Door

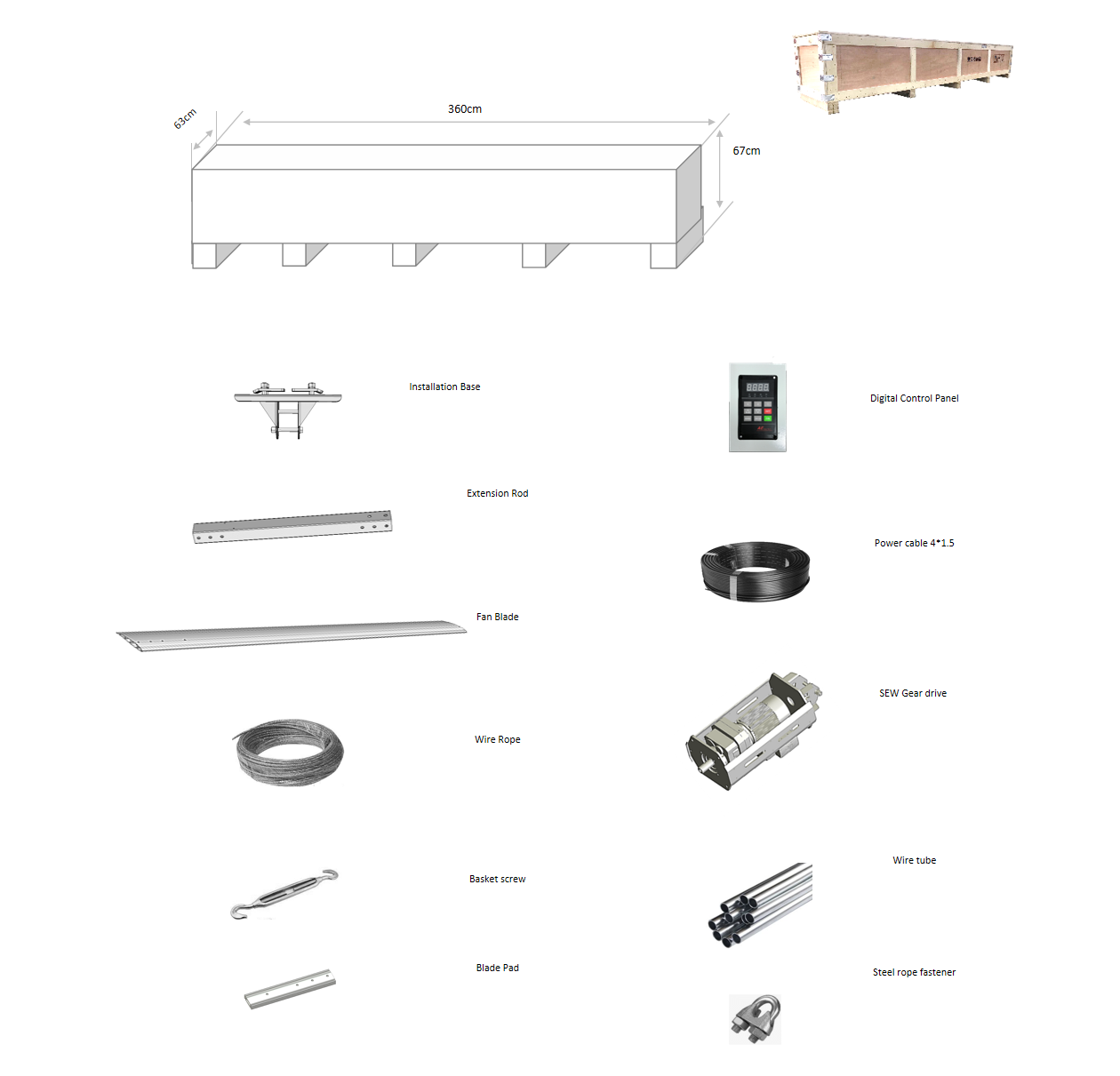

Main Components

Installation Condition

1644504034(1)

We have experienced technical team, and we will provide professional technical service including measurement and installation.

1. From blades to floor > 3m
2. From blades to barriers (crane) > 0.3m
3. From blades to barriers (column/light) > 0.3m
1644564550(1)

Application

Application1

Product detail pictures:
