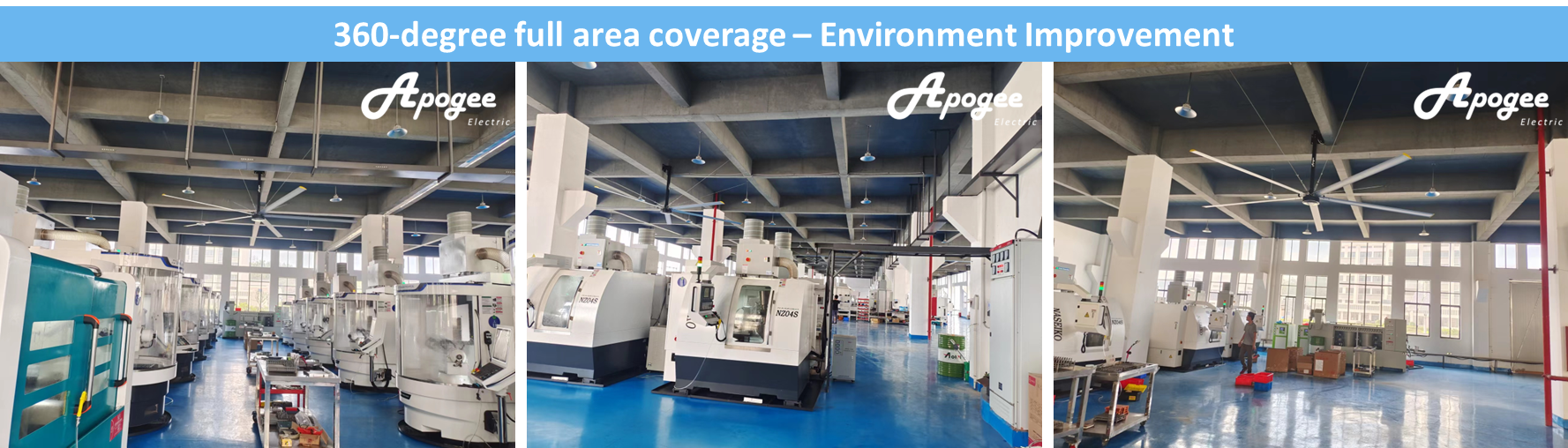

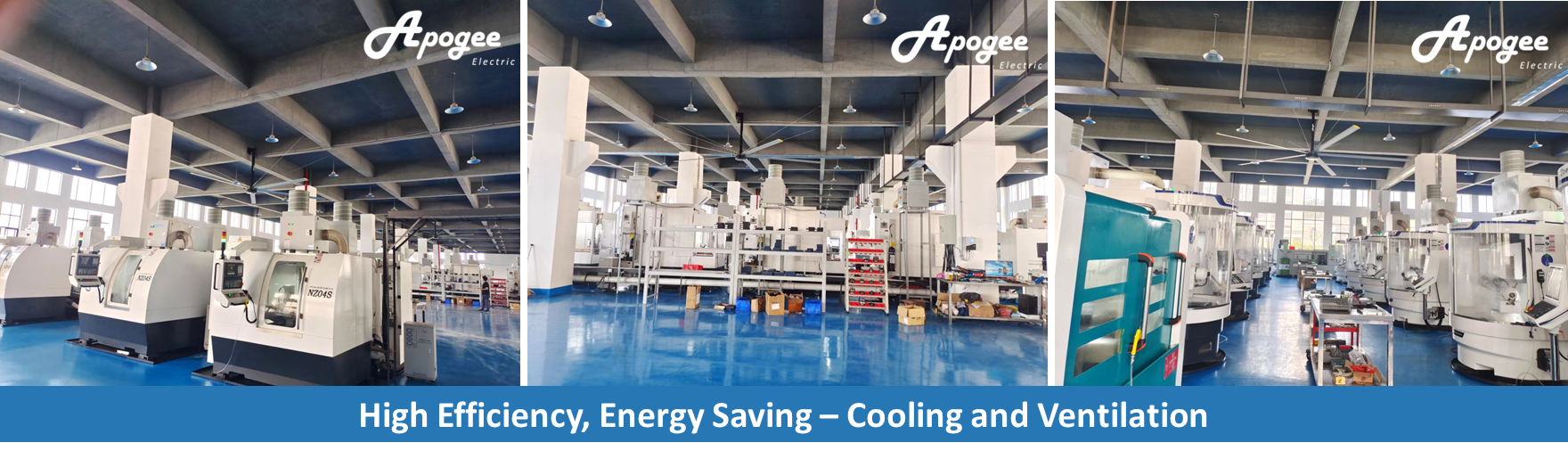

Apogee HVLS Fans in Factory Workshop with CNC Machine
Industrial factories with CNC machines are highly suitable for using HVLS (High air volume, Low Speed) fans, as they can precisely address the core pain points in such environments.
In simple terms, the main reasons why CNC machine tool factories need HVLS fans are to enhance employee comfort, significantly save energy, improve air quality, and increase overall production efficiency.
The Problems in a CNC Machine Factory
- Stratified Hot Air: Heat generated by CNC machines, compressors, and other equipment rises to the ceiling, creating a hot, stagnant layer high above the floor. This wastes energy in both winter and summer.
- Poor Air Quality: Coolants, lubricants, and fine metallic dust (swarf) can linger in the air, creating unpleasant odors and potential respiratory issues for workers.
- Spot Cooling Inefficiency: Traditional high-speed floor fans create a narrow, intense blast of air that is ineffective in large spaces, creates noise, and can even blow contaminants around.
- Worker Comfort & Productivity: A hot, stuffy environment leads to fatigue, reduced concentration, and decreased productivity. It can also be a safety concern, leading to heat stress.
- High Energy Costs: Traditional methods of cooling a large industrial space with air conditioning are prohibitively expensive. Heating costs are also high due to the stratified hot air.
How HVLS Fans Provide the Solution
HVLS fans work on the principle of moving massive columns of air downward and outward along the floor in a 360-degree pattern. This creates a gentle, continuous breeze that mixes the entire volume of air in the building, and Apogee invented HVLS fans is IP65 design, preventing oil, dust, water to go inside, making sure long lifetime and high reliability.
• Destratification: The primary function. The fan pulls down the stratified hot air at the ceiling and mixes it with the cooler air below. This creates a consistent temperature from floor to ceiling, eliminating hot and cold spots.
In Summer: The breeze creates a wind-chill effect, making workers feel 8-12°F (4-7°C) cooler, even if the actual air temperature only decreases slightly from mixing.
In Winter: By recapturing and mixing the wasted heat at the ceiling, the temperature at the worker level becomes more comfortable. This allows facility managers to lower thermostat settings by 5-10°F (3-5°C) while maintaining the same comfort level, leading to significant heating energy savings.
• Moisture & Fume Evaporation: The constant, gentle air movement accelerates the evaporation of coolant mist and moisture from floors, keeping areas drier and improving air quality by reducing the concentration of lingering fumes.
• Dust Control: While not a replacement for dedicated dust collection systems at the source (e.g., on the machines), the overall air movement can help keep fine dust particles airborne longer, allowing them to be captured by the general ventilation or filtration systems rather than settling on equipment and surfaces.
Protect precision equipment:
Damp air can cause rust and corrosion on precision machine tools, electrical control systems and metal workpieces.
By promoting the evaporation of ground moisture and overall air flow, it helps to reduce environmental humidity, providing a drier and more stable working environment for expensive CNC machines and workpieces, indirectly extending the service life of equipment and reducing maintenance costs.
Integration with Other Systems
HVLS fans are not a standalone solution but a fantastic complement to other systems:
• Destratification: They work in tandem with radiant heaters or unit heaters to distribute heat evenly.
• Ventilation: They can help move air toward exhaust fans or louvers, improving the overall effectiveness of the building's natural or mechanical ventilation.
• Cooling: They dramatically improve the efficiency and reach of evaporative coolers (swamp coolers) by distributing the cooled air throughout the space.
In conclusion, for CNC machine tool factories, HVLS fans are facilities with a very high return on investment (ROI). By addressing the fundamental issues of environmental control, it simultaneously achieves the two major goals of energy conservation and consumption reduction as well as quality improvement and efficiency enhancement, and is an indispensable important device for modern intelligent factories.
If you want to be our distributor, please contact us through WhatsApp: +86 15895422983.
Post time: Sep-05-2025
